St. Annen Museum Type XII

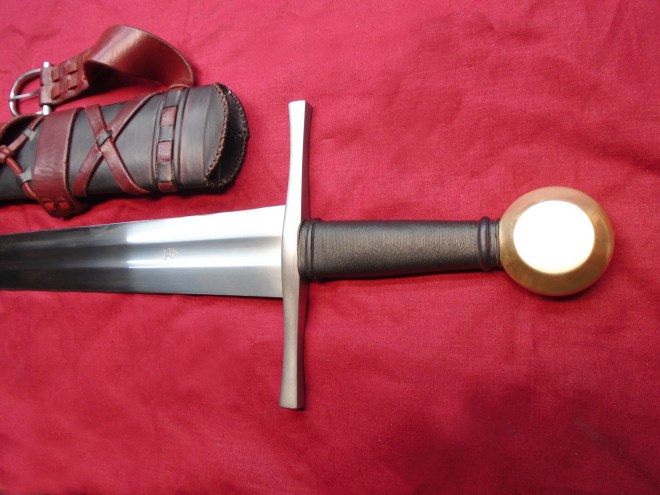

scabbardtopandhilt

This sword (an Oakeshott Type XII) is inspired by a splendid piece in the St. Annen Museum in Lübeck, Germany.  This sword is featured in the book, The Sword — Form and Thought published by the Deutsches Klingen Museum in Solingen, Germany.  It contains the research of Swedish swordmaker, Peter Johnsson, for the 2015-2016 exhibit of the same name.

SFandT Photo
The original sword as show in the book The Sword – Form and Thought

The goal of this project was to further familiarize myself with Peter’s research into the geometry of sword design.  This sword was an ideal candidate for learning: it is highly corroded, but clearly, it once was a stunning piece. Because of the corrosion, the final dimensions are unclear, so this leaves room for multiple interpretations. I didn’t want to simply recreate Peter’s research on this sword. I wanted to utilize his geometric strategies to make another interpretation of what this sword may have looked like.

St. Annen XII

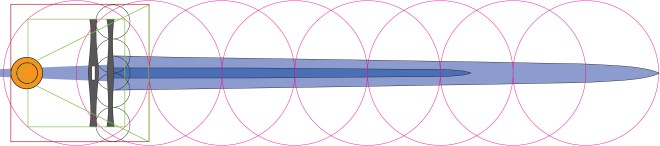

The geometric strategy I used for this sword

This is a sword for a mounted knight. It has a long blade for an extended reach. In addition, the bronze pommel is weighted to give the blade a lively feel in spite of the blade length. This sword would have made an impression on the battlefield.

Stats:

Overall Length: 107,0 cm (42.13″)
Blade Length: 90,0 cm (35.43″)
Blade Width (at guard): 5,5 cm (2.17″)
Center of Balance (from guard): 13,0 cm (5.12″)
Center of Percussion (from guard): 61,0 cm (23.62″)
Weight: 1488 grams (3.28 lbs.)
Blade Steel: 80CRV2

Hilt Material: Bronze pommel and iron guard. Grip is a wood core with a linen thread wrap and a leather cover. The grip color is “abbey black.”  Abbey black is a color that I prototyped with Emma Martinson at Albion Swords.  Because black dye was not always available, monk robes were often over dyed blue (woad) to make a midnight blue, then red (madder) was dyed over the top of it to kill the blue tint. The result is a black that has a slight red tint in bright sunlight, but looks black when in the shade. Due to the two step dye process, you get a black appearance and not dark purple. It is an interesting twist to the regular black dye.

Scabbard: Hand carved basswood core. Leather cover dyed “abbey black.” Red leather belt with forged iron buckle.  Forged iron chape with Fleur-de-lis file work.

I want to thank Peter for his help with the numerous questions that came up during the design process.
